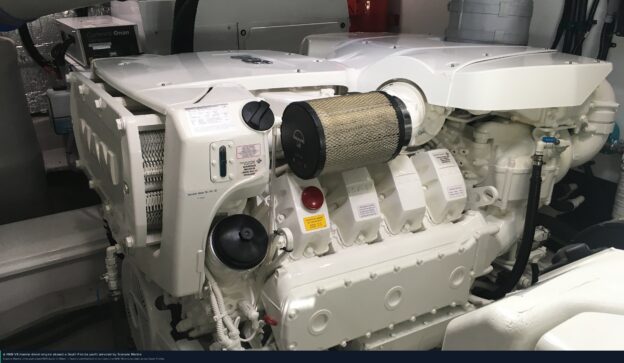

The MAN V8 marine diesel engine series — the V8-1000, V8-1120, V8-1200, and V8-1300 — is the most widely deployed MAN platform in South Florida’s sport fishing and yacht market. Built around a common 16.16-liter, 8-cylinder 90° V architecture with Common Rail direct injection and producing between 1,000 and 1,300 horsepower, the V8 series delivers the offshore reliability, parts availability, and technical support that South Florida’s demanding marine environment requires.
As the authorized MAN dealer in Miami, Scarano Marine services more MAN V8 engines than any other shop in our territory. Our team work on these engines approximately 90% of the time. This guide draws directly from MAN’s official technical documentation combined with our daily service experience on this platform in South Florida’s specific conditions.
MAN V8 Marine Diesel Engine — Official Specifications
All V8 variants share a common platform architecture per MAN’s official documentation: 8 cylinders in 90° V arrangement, 4-stroke diesel, watercooled, 4 valves per cylinder, Common Rail direct fuel injection with electronic control, closed lubrication system with forced feeding, plate heat exchanger seawater cooling, and EDC electronic engine monitoring. Fuel specification: DIN EN 590.
Turbocharging: 1-stage turbocharger with charge air intercooler and waste gate on the V8-1000. 2-stage turbocharging on the V8-1120, V8-1200, and V8-1300 — a key difference that contributes to the higher torque output and improved low-RPM response on the upper three variants.
V8-1000
- Maximum output: 735 kW (1,000 hp) at 2,300 rpm
- Maximum torque: 3,345 Nm at 1,400–2,100 rpm
- Displacement: 16 liters
- Bore/Stroke: 128 mm / 157 mm
- Fuel consumption at rated power: 205 l/h
- Dry weight: 1,780 kg
- Turbocharging: 1-stage
- Exhaust: IMO Tier II, China 2, RCD 2013/53/EC
- Typical application: 45–65 foot sport fishing vessels, motor yachts
V8-1120 SCR
- Maximum output: 824 kW (1,120 hp) at 2,300 rpm
- Maximum torque: 3,710 Nm at 1,200–2,100 rpm
- Displacement: 16 liters
- Bore/Stroke: 128 mm / 157 mm
- Fuel consumption at rated power: 200 l/h
- Dry weight: 1,780 kg
- Turbocharging: 2-stage
- Exhaust aftertreatment: SCR — IMO Tier III, EPA Tier 4
- Classifiable: Yes
- Typical application: Vessels requiring classification or stricter emissions compliance
V8-1200
- Maximum output: 882 kW (1,200 hp) at 2,300 rpm
- Maximum torque: 4,010 Nm at 1,200–2,100 rpm
- Displacement: 16 liters
- Bore/Stroke: 128 mm / 157 mm
- Fuel consumption at rated power: 242 l/h
- Dry weight: 1,941 kg
- Turbocharging: 2-stage
- Exhaust: IMO Tier II, EPA Tier 3, China 2, RCD 2013/53/EC
- Typical application: 55–75 foot sport fishing convertibles — the most common V8 variant in South Florida’s fleet
V8-1300
- Maximum output: 956 kW (1,300 hp) at 2,300 rpm
- Maximum torque: 4,350 Nm at 1,300–2,100 rpm
- Displacement: 16 liters
- Bore/Stroke: 128 mm / 157 mm
- Fuel consumption at rated power: 256 l/h
- Dry weight: 1,941 kg
- Turbocharging: 2-stage
- Exhaust: IMO Tier II, EPA Tier 3, China 2, RCD 2013/53/EC
- Typical application: 65–85 foot sport fishing convertibles and motor yachts — the highest-output standard V8 in the series
What Makes the MAN V8 the Right Engine for South Florida
The V8’s reputation in South Florida’s sport fishing and yacht community reflects several characteristics that MAN engineered into the platform and that our service experience confirms daily:
Common rail direct injection
All four V8 variants use MAN’s Common Rail direct injection system with electronic control — delivering precisely metered fuel at high injection pressure for complete combustion, high efficiency, and the smooth power delivery that makes MAN engines recognizable at the helm. The 2-stage turbocharging on the V8-1120, V8-1200, and V8-1300 extends the effective torque curve significantly — the V8-1300’s 4,350 Nm is available from 1,300 RPM all the way to 2,100 RPM, giving South Florida sport fishing boats the low-end grunt to pull out of displacement cleanly and hold cruise speed efficiently.
EDC electronic engine monitoring
The V8’s Electronic Diesel Control system monitors operating parameters continuously and manages injection timing, fuel delivery, and thermal protection in real time. This is the system that makes a factory-level diagnostic scan so valuable — EDC logs fault history, performance trends, and parameter deviations that don’t produce symptoms at the helm but will show up as failures under the sustained load of a Bahamas crossing or a tournament day. As the authorized MAN dealer with MAN’s proprietary diagnostic software, Scarano Marine reads the full EDC data set — not the summary that generic tools provide.
Plate heat exchanger cooling
The V8 uses a plate heat exchanger seawater cooling system — a more efficient design than traditional tube-and-shell exchangers, with more surface area in a compact package. In South Florida’s warm inshore water temperatures, this efficiency advantage matters. A properly maintained V8 heat exchanger handles South Florida summer conditions well. A scaled or zinc-depleted exchanger loses that advantage quickly — which is why heat exchanger service is a non-negotiable part of our South Florida service schedule for every V8 we maintain.
MAN V8 Warranty and Factory Support
MAN offers a standard 2-year warranty on all V8 engines, with the option to extend to 5 years total through MAN’s Gold Standard Premium (GSP) program — available for an additional 2,500 or 4,000 operating hours. The GSP covers all MAN engine room components including electronics and turbochargers, is transferable to subsequent owners, and requires all maintenance to be performed by authorized MAN service partners using genuine MAN parts.
For V8 owners in South Florida, the Bahamas, or anywhere in the Caribbean, MAN operates a 24/7 emergency hotline reachable at +1 754 238 6313 (North and Latin America). As an authorized MAN dealer, Scarano Marine is part of MAN’s global service network — which means our clients benefit from MAN’s engineering team backup on complex cases, and their service history is recognized within MAN’s system.
MAN V8 Service Intervals — South Florida Recommendations
MAN’s published service intervals are designed for standard operating conditions. South Florida’s heat, humidity, warm inshore water temperatures, and the sustained high-load running common in tournament and offshore use all push engines harder than those standard conditions assume. Here is our South Florida-adapted schedule:
Every 200–250 hours or annually
- Engine oil and filter change: MAN-approved oil specification — MAN M3275-1 for the V8 series.
- Raw water impeller: Replace annually in South Florida conditions regardless of visual condition.
- Primary and secondary fuel filters: Replace — South Florida’s heat accelerates diesel degradation and microbial growth.
- Belt inspection: Replace any belt showing glazing, cracking, or wear.
Every 2 years
- Heat exchanger service: Descaling and full inspection. South Florida’s mineral-rich water deposits scale faster than cooler climates.
- Coolant system flush and refill.
- Full hose and clamp inspection.
Every 4 years — major service
- Turbocharger inspection: Bearing play, compressor wheel condition, housing service.
- Intercooler service: Complete disassembly and ultrasonic cleaning.
- Coolant pump: Replacement of coolant pump assembly.
For full MAN V8 official specifications and documentation, visit MAN Yacht Engines.
MAN V8 Performance in South Florida — What Our Technicians See Daily
Summer heat de-rating
In South Florida’s summer — ambient air above 90°F, inshore water temperatures in the mid-80s — V8 owners can expect some reduction in peak power output versus MAN’s rated conditions. This is normal physics, not a malfunction. The EDC manages this automatically. Where problems develop is on engines with deferred maintenance — scaled heat exchangers, marginal impellers. South Florida’s summer heat doesn’t create these failures. It reveals them.
Real-world fuel consumption
MAN’s published fuel consumption figures are measured at rated power under controlled conditions. In real South Florida use, consumption varies based on hull form, vessel weight, propeller specification, and operating RPM. MAN’s published figure for the V8-1200 is 242 l/h at full rated power — real-world cruise consumption on a properly-matched sport fisher running at typical cruise RPM is significantly lower than this maximum figure. Our service team can advise on realistic consumption expectations for your specific vessel configuration.
Longevity
With South Florida-adapted service intervals maintained consistently, MAN V8 engines in our service records regularly reach 6,000–8,000 hours before requiring major internal work. Engines with deferred maintenance — particularly on cooling systems — typically show significant wear at 3,000–4,000 hours. The difference between those outcomes is maintenance discipline, not luck.
Common MAN V8 Issues in South Florida
- Heat exchanger scaling: South Florida’s mineral-rich water deposits scale on the plate heat exchanger faster than cooler climates. Owners who skip this service consistently develop cooling problems.
- Marine diesel fuel injectors failing: Earlier than manufacturer intervals in South Florida’s warm diesel environment. Injector testing is the most cost-effective prevention.
- EDC power de-rating — diesel engine losing power: Frequently misdiagnosed as mechanical failure. Usually traces to a marginal cooling system under summer load.
- Saltwater corrosion on EDC electrical connections: Ghost fault codes and intermittent sensor issues often trace to salt air corrosion on wiring harness connectors.
Why Scarano Marine Is the Right Choice for MAN V8 Service in South Florida
Scarano Marine services more MAN V8 marine diesel engines in South Florida than any other facility. As the authorized MAN dealer in Miami, our team work on V8 engines approximately 90% of the time. We carry genuine OEM parts ordered directly from MAN, operate MAN’s proprietary EDC diagnostic software with an active dealer login, and have direct access to MAN’s engineering team for complex cases.
Our founder Adolfo Scarano — Merchant Navy chief engineer, 20 years in diesel engine distribution, factory certified in Friedrichshafen and Detroit — built Scarano Marine on the principle that depth of expertise on a specific platform is what protects a customer’s investment. That depth shows up in every V8 service visit we perform.
Frequently Asked Questions: MAN V8 Marine Diesel Engine
What are the differences between the MAN V8-1000, V8-1120, V8-1200, and V8-1300?
All four variants share the same 16.16-liter, 8-cylinder 90° V block with Common Rail injection. The V8-1000 uses 1-stage turbocharging and produces 1,000 hp with 3,345 Nm of torque. The V8-1120, V8-1200, and V8-1300 all use 2-stage turbocharging which extends the torque curve lower and produces more torque — the V8-1300 delivers 4,350 Nm. The V8-1120 and V8-1200 are also available in SCR variants (with selective catalytic reduction exhaust aftertreatment) for IMO Tier III compliance. The V8-1200 is the most common variant in South Florida’s sport fishing fleet.
What is the MAN Gold Standard Premium warranty on V8 engines?
MAN offers a standard 2-year warranty on V8 engines. The Gold Standard Premium (GSP) extended warranty adds up to 3 more years — for a total of 5 years — at either 2,500 or 4,000 additional operating hours. GSP covers all MAN engine room components including electronics and turbochargers. It is transferable to subsequent owners, which directly supports resale value. All GSP service must be performed by authorized MAN service partners using genuine MAN parts. Scarano Marine, as an authorized MAN dealer, handles GSP warranty service for V8 owners in South Florida.
What oil specification does the MAN V8 require?
MAN specifies oil meeting MAN M3275-1 specification for the V8 series. Never substitute a non-approved oil — the V8’s Common Rail system and tight tolerances make oil quality critical. Scarano Marine uses only MAN-approved oil specifications and can advise on the correct grade for your specific V8 variant and operating profile.
Does Scarano Marine offer mobile MAN V8 service in Fort Lauderdale, Miami, and the Bahamas?
Yes. Our mobile field service teams carry MAN factory EDC diagnostic equipment, genuine OEM parts, and full V8 service capability at your dock throughout South Florida. We regularly service MAN V8-powered vessels in the Bahamas, Caribbean, and Central America. For MAN engine emergencies offshore, MAN’s 24/7 hotline is available at +1 754 238 6313 for North and Latin America. Contact our Fort Lauderdale or Miami facility to schedule mobile service.
Schedule Your MAN V8 Service With South Florida’s Most Experienced Team
Scarano Marine’s factory-certified MAN technicians service more V8 engines in South Florida than any other facility — with genuine OEM parts, factory EDC diagnostic software, and the daily platform experience that only comes from 90% focus on a single engine family. Whether you’re running a V8-1000, V8-1200, or V8-1300, contact us to schedule service.
